DingTalk / Feishu / WeCom

Robot webhooks and card messages for the three major Chinese workplace apps.

Where this page ends: alerts land in your DingTalk / Feishu / WeCom room, with one media type shared by every room and each room's token kept on its own notification rule.

The fast path: paste the webhook URL

If all you want is "this room should get these alerts", you do not have to create a media type first. In the alert rule editor, the Notification rule dropdown offers Quick create: paste the bot's full webhook URL into it.

It recognises DingTalk, WeCom, Feishu Card, Lark Card and FlashDuty, extracts the token from the URL, reuses an existing notification rule with the same token, or creates both the media type and the rule for you.

Anything it cannot recognise (Slack, your own webhook) goes through the manual flow below.

1. Create the group bot in the chat app

Platform	Path	The URL you get
DingTalk	Group settings → Group Assistant → Add Robot → Custom	https://oapi.dingtalk.com/robot/send?access_token=<token>
WeCom	Group settings → Group Robot → Add Robot → New Robot	https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key=<uuid>
Feishu	Group settings → Bots → Add Bot → Custom Bot	https://open.feishu.cn/open-apis/bot/v2/hook/<uuid>
Lark	Group settings → Bots → Add Bot → Custom Bot	https://open.larksuite.com/open-apis/bot/v2/hook/<uuid>

Only the token part goes into Nightingale, not the whole URL — the media type already holds the host and path, and pasting the full URL produces an invalid address.

2. The media type usually needs no change

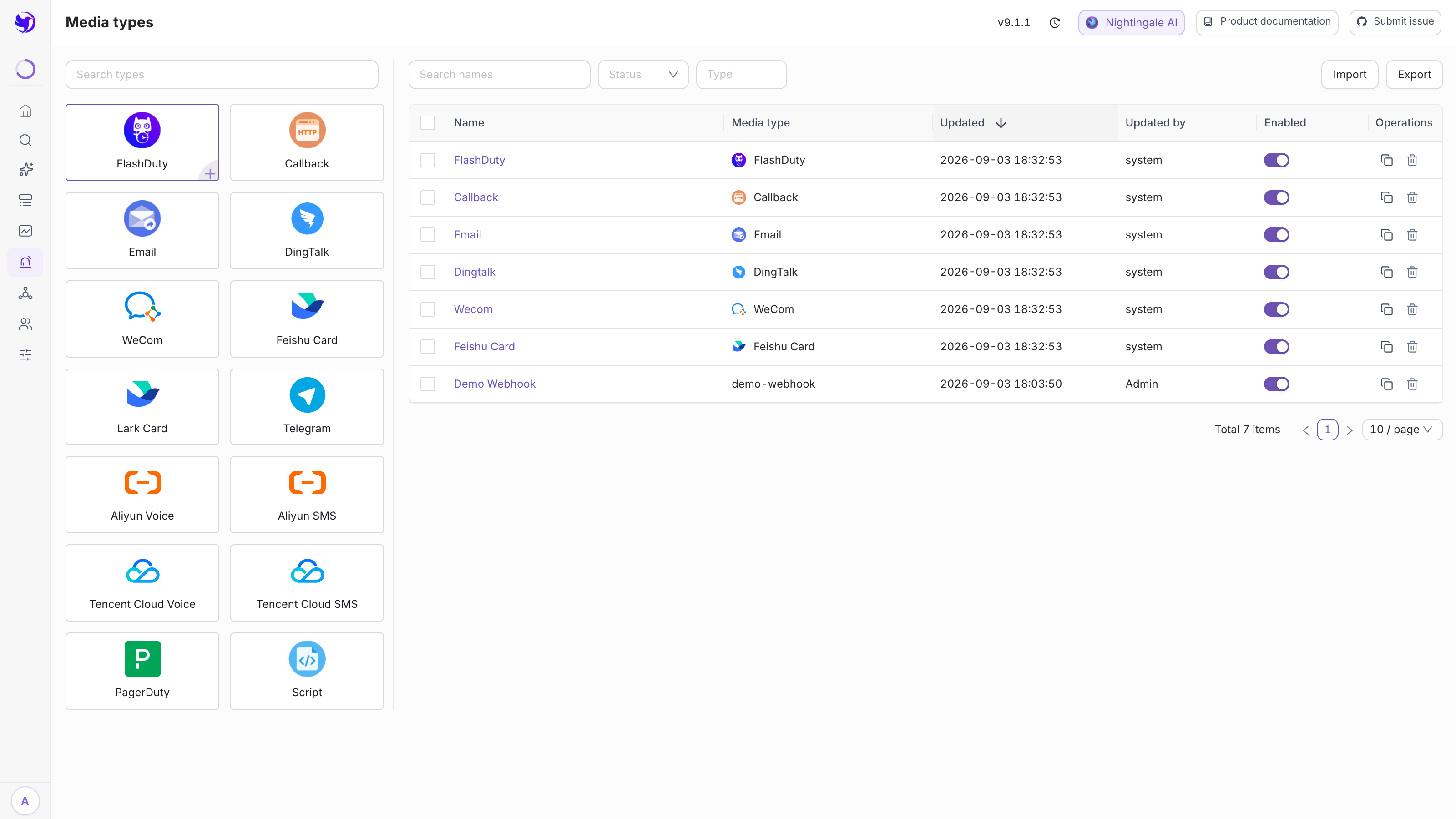

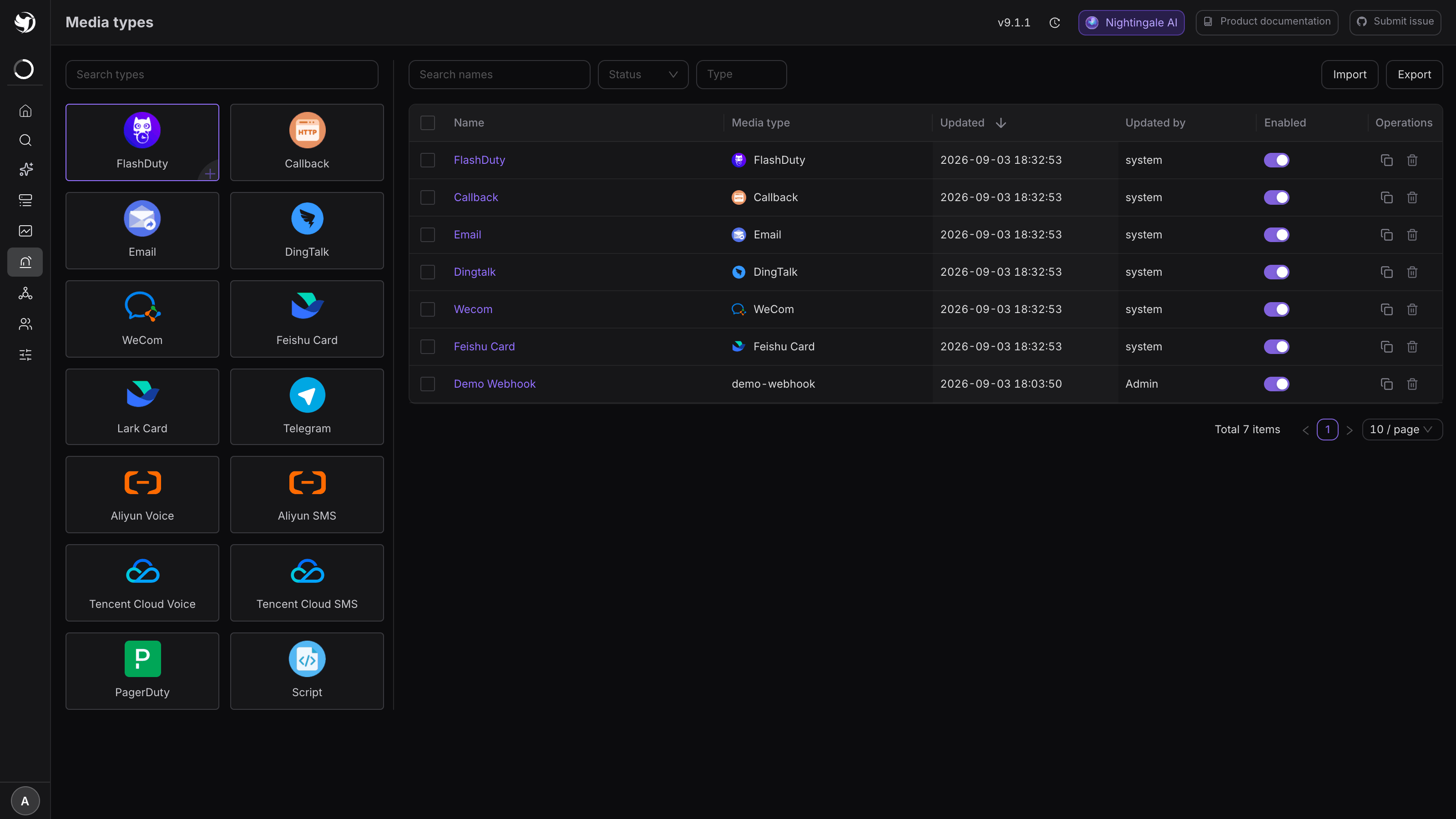

Alerts & Notifications → Media types. The open-source edition ships Dingtalk, Wecom and Feishu Card ready to use; Lark Card has a card in the type panel on the left, one click to create.

URL, method, headers and body are all pre-filled. You only need to touch them when:

• You need a proxy to reach the internet — fill in Proxy under HTTP configuration;
• You want separate counters or rate limits per business line — duplicate the media type and rename it;
• You want a different message shape (DingTalk ActionCard instead of markdown, say) — edit the Body.

3. Put the token in the notification rule

Alerts & Notifications → Notification rules → Add, then inside the notification config:

1. Set Media type to Dingtalk / Wecom / Feishu Card;
2. Message template auto-selects the matching one (Dingtalk / Wecom / FeishuCard);
3. Fill in the media parameters (see the table below); Bot Name is only a note and can be left blank;
4. Check the applicable severities, or the config matches nothing;
5. Click Run test → "Use mock event", and confirm the message really reaches the room.

The three platforms side by side

	DingTalk	WeCom	Feishu Card	Lark Card
Parameter name	Access Token	Key	Access Token	Token
What to paste	what follows access_token=	the UUID after key=	the UUID after /hook/	the UUID after /hook/
Built-in template	Dingtalk	Wecom	FeishuCard	LarkCard
Template fields	title + content	content	title + content	title + content
Message shape	markdown	markdown	interactive card, green on recovery and red on firing	same as Feishu
Rate limit	20 msg/min	20 msg/min	100 msg/min, 5 msg/s	same as Feishu

The WeCom template has only a content field and no title, which is why the built-in template puts severity and rule name on the first line of the body.

Security settings: keywords and IP allowlists only

All three ask you to pick a security policy when creating the bot. Nightingale supports:

• Custom keywords — the bot only forwards messages containing one of them. Pick something that always appears, such as Triggered or a prefix of your rule names. DingTalk allows up to 10 keywords, Feishu up to 3.
• IP allowlist — the egress IP of your Nightingale server.

Signed requests are not supported. The media type's request body has no signature field and nowhere to keep the secret, so a bot configured with signing rejects everything with sign not match.

Mentioning specific people

Only DingTalk supports it. The built-in Dingtalk body already contains {{batchContactsAts $sendtos}} and atMobiles, but $sendtos is empty by default. To make it work:

1. Edit the Dingtalk media type and set Variable configuration → Contact key to Phone;
2. The notification rule then grows Users / Teams fields — fill them in;
3. Those users need a phone number on file, and must actually be in the room.

A WeCom group bot cannot mention by phone number (only <@userid> inside markdown), and neither can a Feishu card bot.

Common errors

Error	Cause
keywords not in content (DingTalk) / Key Words Not Found (Feishu)	The message does not contain your keyword. Pick one that always appears, or switch to an IP allowlist
sign not match / sign match fail	The bot uses signing; switch it to keywords or an IP allowlist
invalid webhook url (WeCom)	The whole URL went into Key; paste only the UUID
errcode 45009 (WeCom), or DingTalk throttling	Over 20 msg/min. Use mute rules, or split across several rooms
status_code:200 but nothing in the room	The bot was removed from the room, or the keyword policy filtered the message out

Failure details live in the event's Notification records — see Retries and delivery status.

Next

• Change the layout of the message: Templates and variables
• Slack / Telegram / Discord: Slack / Telegram / Discord / Mattermost
• Verify the whole path before you rely on it: Test a notification end to end
