Templates and variables

Templates are Go text/template with every variable under $event; a misspelled variable raises no error and just leaves a hole in the message — preview catches it.

Where this page ends: your own message template, every variable in it verified in the preview, and an understanding of why a misspelled variable never raises an error — it just leaves a hole in the message.

Open the template editor​

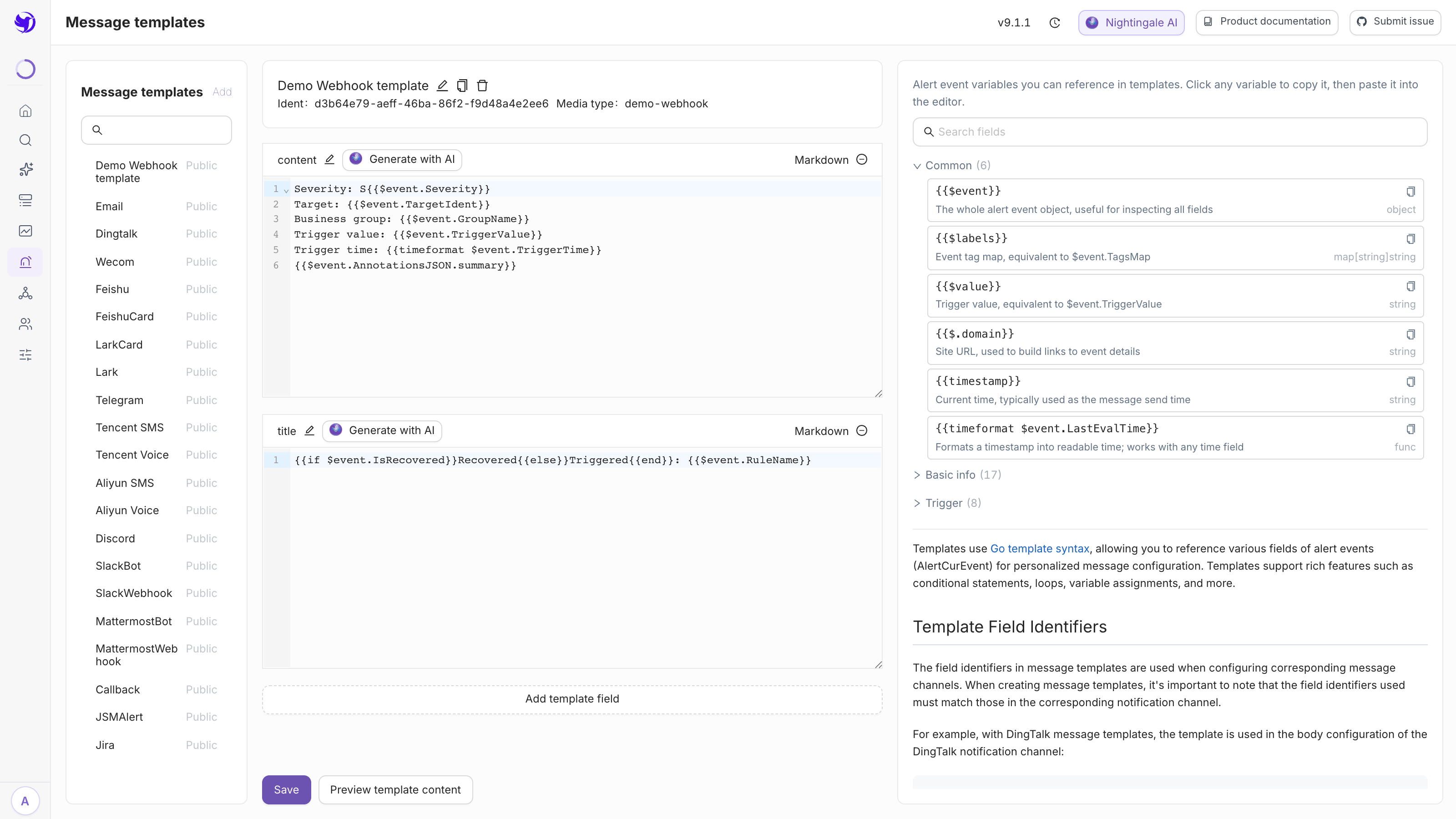

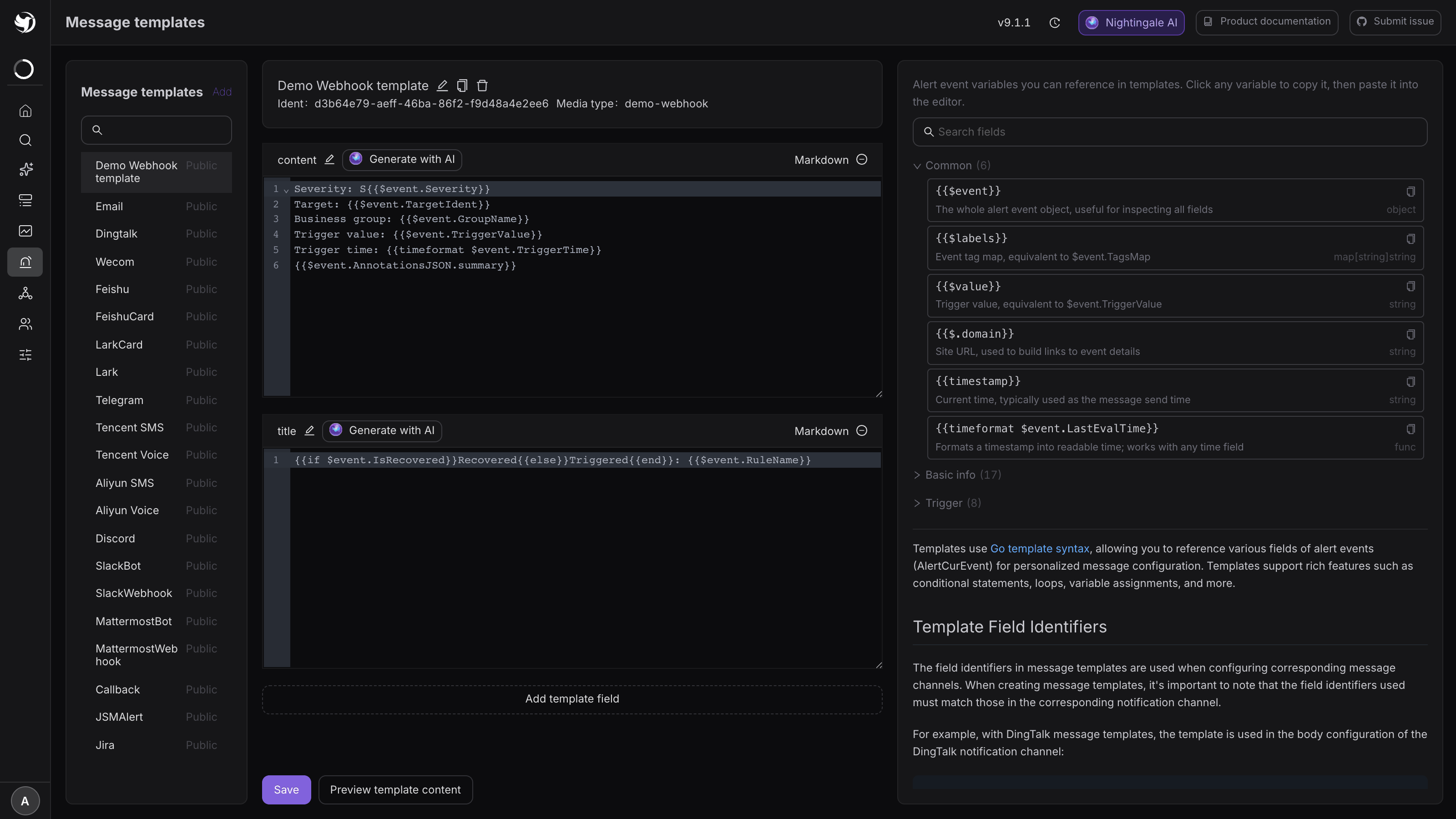

Alerts & Notifications → Message templates. The list is on the left, the editor in the middle, and a panel of referenceable event variables on the right (click any of them to copy).

Message templatesMessage templates

The header shows the template's ident and its media type. The ident is a server-side uuid you never need to touch; the media type decides which media type this template appears under in a notification rule.

The open-source edition ships 20 templates, covering dingtalk, wecom, feishu, feishucard, lark, larkcard, telegram, discord, slackbot, slackwebhook, mattermostbot, mattermostwebhook, email, callback, jira, jsm_alert, tx-sms, tx-voice, ali-sms and ali-voice. Do not edit a built-in template in place — an upgrade overwrites any template whose update_by is still system. Clone it first.

Every variable hangs off $event​

A template is a Go template. Before rendering, the backend injects these:

{{ $events := .events }}          {{/* the batch, an array */}}
{{ $event := index $events 0 }}   {{/* the first event — what you almost always want */}}
{{ $labels := $event.TagsMap }}   {{/* label key/value pairs */}}
{{ $value := $event.TriggerValue }}

So a field is written {{$event.RuleName}}, not {{.RuleName}}. The latter raises no error; it renders as an empty string. "The message went out but one line is blank" is nearly always this.

The site URL is the exception: it is a key in the render data rather than a variable, written {{$.domain}}. Do not write {{.domain}} — dot is rewritten inside range and with, so that form only holds at the top level.

The variables and helpers you will actually use​

The right-hand panel groups fields into Common / Basic / Trigger / Tags and annotations / Target / Notification / Callback and extras, and is searchable. The ones that come up most:

ExpressionWhat it is
{{$event.RuleName}}Rule name
{{$event.RuleNote}}Rule note
{{$event.Severity}}Severity, 1 / 2 / 3
{{$event.IsRecovered}}Whether this is a recovery event
{{$event.TriggerValue}}The value at trigger time
{{$event.TagsJSON}}Labels as an array
{{$event.TagsMap.instance}}One specific label — replace instance with your own key
{{$event.AnnotationsJSON.summary}}One specific annotation
{{$event.TargetIdent}} / {{$event.GroupName}}Host ident / business group
{{$event.TriggerTime}} / {{$event.FirstTriggerTime}} / {{$event.LastEvalTime}}Three timestamps, all int64

Timestamps need formatting to be readable: {{timeformat $event.TriggerTime}}. timeformat only accepts int64 — hand it a string and it renders invalid value; expected int64 and sends that verbatim. For the current time use {{timestamp}}.

Other helpers worth knowing: humanizeDurationInterface (seconds → "1h20m"), formatDecimal (round to N places), sub / add / now.Unix (durations), jsonMarshal, toUpper / toLower, join. The full field list lives in Notification template variables.

The idiomatic way to show "how long has this been firing", copied from the built-in DingTalk template:

{{$d := sub now.Unix $event.FirstTriggerTime}}
{{if $event.IsRecovered}}{{$d = sub $event.LastEvalTime $event.FirstTriggerTime}}{{end}}
Duration: {{humanizeDurationInterface $d}}

The media type decides the field names​

A template can hold several fields (Add template field, below the editor). The names are not free-form — the media type's request body hard-codes which ones it reads:

Media typeHow the body references itFields the template must have
DingTalk{{$tpl.title}} + {{$tpl.content}}title, content
WeCom{{$tpl.content}}content
Feishu Card{{$tpl.title}} + {{$tpl.content}}title, content
Emailfixedsubject, content
Aliyun SMS / Voice{{$tpl.incident}}incident

A field that does not match renders empty and the backend does not complain. When you create a template the UI derives the expected field names from the media type's request body and seeds usable starter content, so "create" is safer than "start from a blank editor".

Create your own template​

Click Add above the list (or select a built-in template and click the clone icon):

FieldNotes
NameYours, e.g. Dingtalk-ops
Authorized teamsRequired; decides who may edit this template
Media typeThe dropdown lists only the types of media types that already exist
VisibilityPublic / Private

Save, edit the content in the editor, save again. Then go back to the notification rule and point that notification config's Message template at the new one.

Most built-in templates are written in Chinese; the Discord / Slack / Mattermost / Jira ones are in English. Clone and translate if you need another language.

Preview​

Preview below the editor renders the template against real data:

  • Mock event — a built-in fake event whose severity and recovered flag you can choose; use this on a fresh install.
  • History events — pick real events that already happened.

Expected result: one rendered block per field. When a field fails to render, the preview shows the Go template error directly — this is the only place a template error is visible. During a real send the error text is delivered as the message body instead.

Email templates are the exception​

Email renders through text/template with no escaping at all, so HTML tags survive verbatim, and the mail body is sent as text/html — which is why the built-in Email template is one large HTML table. The flip side: a newline in a plain-text template is not a line break in the recipient's mail client, so write <br>.

Every other media type goes through html/template, and the result is then JSON-escaped (quotes and newlines) because it has to sit inside a JSON string in the request body. That means hand-written <b> tags in a non-email template get escaped away, unless the target platform expects HTML anyway (the built-in Telegram template relies on parse_mode: HTML).

Traps worth knowing about​

  • A misspelled variable is silent. {{$event.RuleNam}} renders empty. Preview before you ship.
  • {{.RuleName}} is always empty. The top-level dot only has the keys events and domain.
  • Give an edit a moment. The alerting engine caches templates; a save takes effect within roughly 10 seconds.
  • Never edit built-ins. As long as update_by is system, an upgrade restores them. Clone first.
  • The create API takes an array. When creating via the API the body must be [{...}]. The server generates the uuid ident itself and ignores the one you send; on update you must echo back the stored ident or you get cannot update ident.
