Site and user variable settings

Site-wide settings and encrypted variables that templates and integrations can reference.

Where this page ends: a credential stored in the database whose plaintext never shows up in the UI again, a way to reference it from a notification medium, and a field-by-field reading of Site settings.

Both live under System, but they do different jobs: Variable settings holds values (mostly credentials), while Site settings controls how the system looks and what it logs.

1. Create a variable​

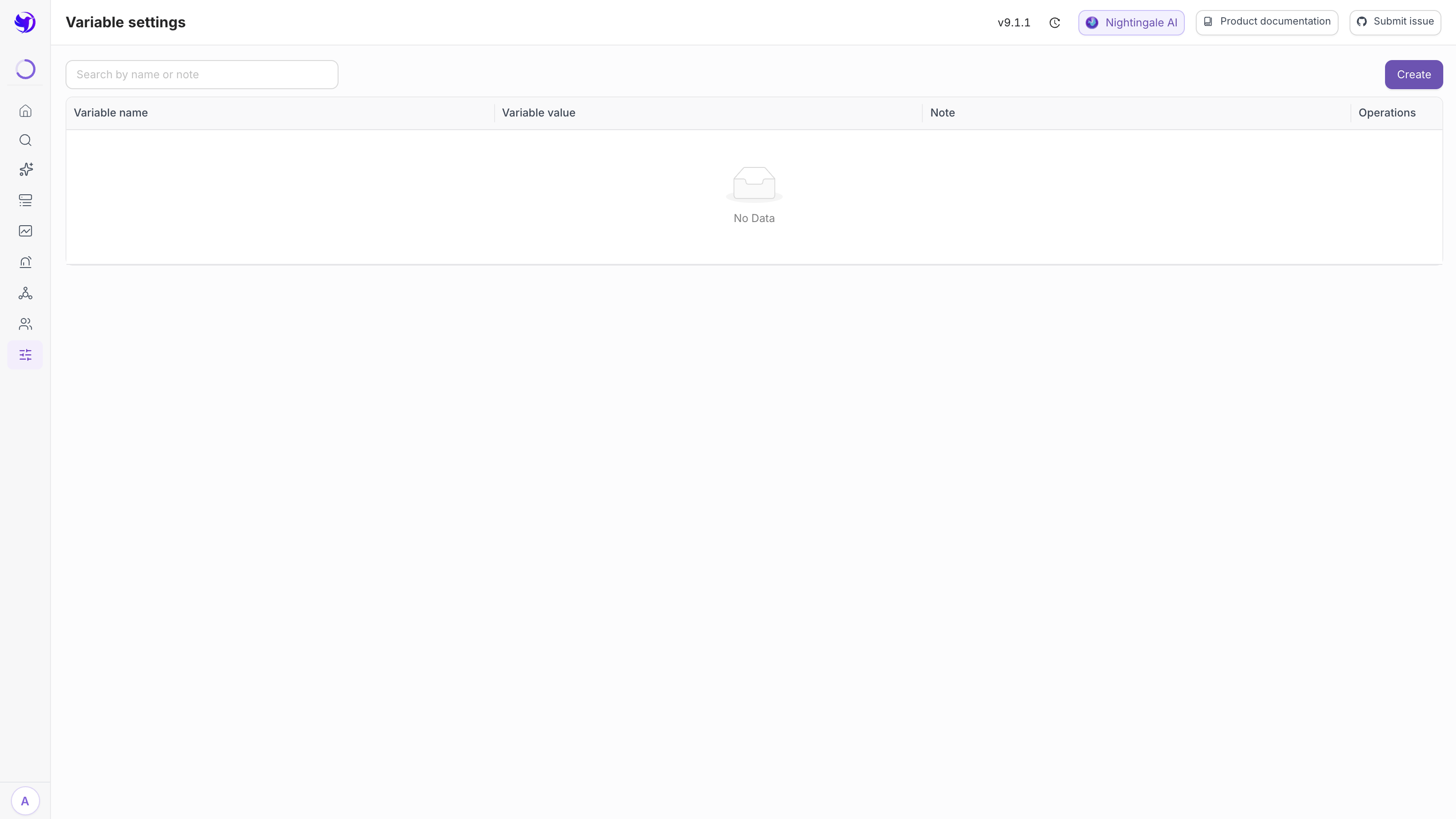

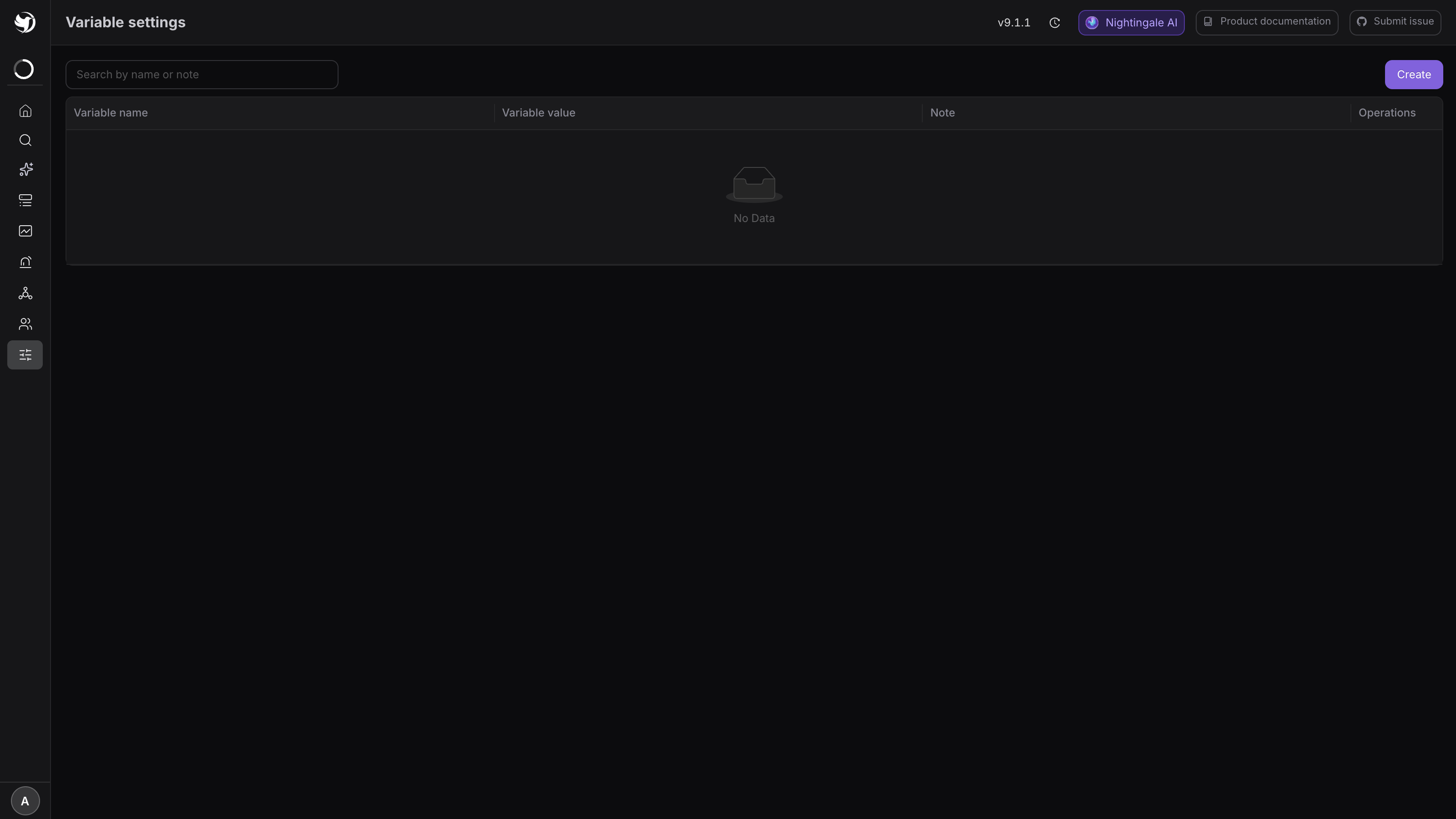

System → Variable (/system/variable-settings), then Create at the top right.

Variable settingsVariable settings
FieldNotes
Variable nameRequired, unique across the site. Naming rules below
Is encryptedA switch. Turning it on makes Variable value a password input
Variable valueRequired
NoteSay who uses it and where it came from — nobody will be able to read the value again

Expected result: a new row with columns for name, value, note and actions. An encrypted row shows ****** in the value column — that is not truncation, the value genuinely cannot be read back.

2. Reference it from a notification medium​

References use Go template top-level field syntax — the variable name with a leading dot:

{{.my_token}}

Exactly three places expand them; nowhere else does:

LocationFields
A media type's HTTP configurationURL, headers, query parameters, request body
SMTP configurationThe mail medium's server settings
The six SSO configuration bodiesLDAP, CAS, OIDC, OAuth2, DingTalk, Feishu

Data sources and LLM configs are not among them. Their password fields are ordinary columns on their own tables, are not run through variable substitution, and can only be changed on their own edit pages.

No restart is needed after a change: the backend compares the variable count and last-update time every 9 seconds and pulls a fresh decrypted snapshot when either moves. In a split deployment (standalone n9e-alert, n9e-edge) those processes do not decrypt for themselves — they call the centre's /v1/n9e/user-variable/decrypt, which requires [HTTP.APIForService] Enable = true on the centre.

3. What encryption does and does not do​

With Is encrypted on, the value is encrypted in the browser with an RSA public key before it is sent, and the database holds the ciphertext. The key pair is generated and stored by the centre at startup; it has nothing to do with the [HTTP.RSA] OpenRSA switch, which governs whether login passwords are encrypted in transit. Encrypted variables work fine with it off.

What it stops:

  • Casual reading. The list shows ******, and the value input is disabled when editing an existing variable — replacing it means clicking Reset password and typing a new value.
  • Leaking into logs. Variable values rendered into headers, query parameters and request bodies are replaced with *** in the access log and in notification records. That is done by re-rendering the template against a masked context, not by string matching, so partial values do not slip through.

What it does not stop is anyone who can read the database: the private key and its passphrase sit in the same configs table as the ciphertext. This layer solves credential visibility in the operator UI, not database compromise — the real boundary is database access control.

On permissions, all four endpoints are guarded by the /system/variable-settings permission point rather than being Admin-only — the single exception among the system settings (see Roles and permission matrix). Editing and deleting carry a second check: you must be Admin or the variable's creator, otherwise the call returns 403.

4. Naming rules and reserved words​

A variable name must match ^[a-zA-Z_][a-zA-Z0-9_]*$ — a letter or underscore first, then letters, digits and underscores. Duplicates are rejected outright.

Two further sets of names are reserved and fail on save:

ReservedWhy
Scheme, Host, Hostname, Port, Path, Query, FragmentField names used in URL parsing
tpl, event, events, params, sendto, sendtosBuilt-in top-level keys of the notification template context. A same-named variable is overwritten by the built-in value at render time and silently does nothing

5. What a mistyped name looks like​

It does not raise an error. Go templates render a missing key as an empty string, and the value in the log was already masked to ***, so all you see is the far end reporting an authentication failure — with no hint that a variable name was misspelled.

The backend does log one Warning as a backstop, once per site:

notify http config "xxx" references undefined variable "my_tokne",
it renders as empty; check 变量配置 (system variable settings)

When chasing this class of problem, grep the centre or alert process logs for references undefined variable.

6. The fields in Site settings​

System → Site (/system/site-settings). The open-source build has these ten:

FieldWhat it controls
Site URLThe externally reachable address of Nightingale; the backend uses it to build share links and links inside notifications
Default access URLWhere the root path / redirects to, /landing by default
Business group display modeTree or list
Business group separatorSplits group names in tree mode, - by default
Team display modeTree or list, list by default
Team separatorThe same, - by default
Time series legend columnsWhich statistics the Metrics explorer legend shows, Last by default
Print access logWhether to write access logs at all, off by default
Print request body pathsSee the note below
Font familyThe UI font

Saving requires Admin, and the page reloads itself afterwards.

Use "Print request body paths" sparingly. Every path listed there has its full request body written into the access log. It is the fastest way to debug a form submission, and equally the fastest way to write plaintext credentials to disk — do not list login, data source or variable settings paths. Remove the entries once you are done; do not leave them on in production.
